CHF series multi-zone systems

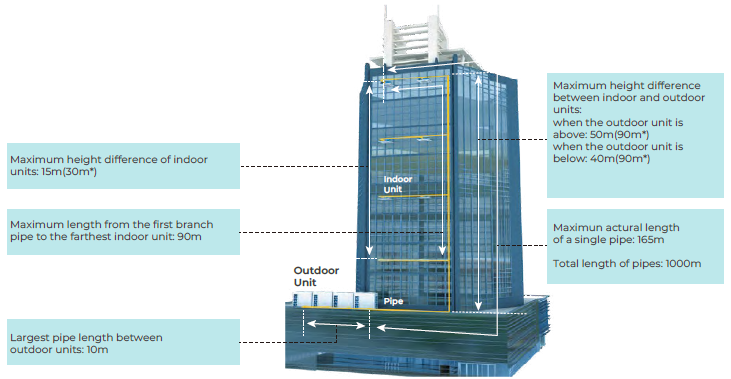

EXTRA LONG PIPE DESIGN

With extra long pipe, the height difference between the indoor unit and outdoor unit is up to 90 meters*, which makes installation more flexible.

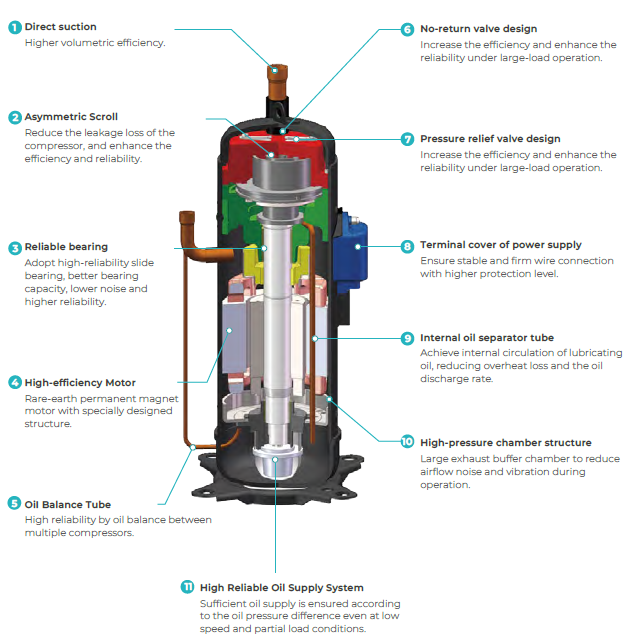

HIGH-EFFICIENCY COMPRESSOR

CHF series adopts a new generation of scroll compressor, and it has an excellent mechanism called as FCM (Frame Compliant Mechanism) which will optimally increase the performance of the whole compressor, especially for operation under low load.

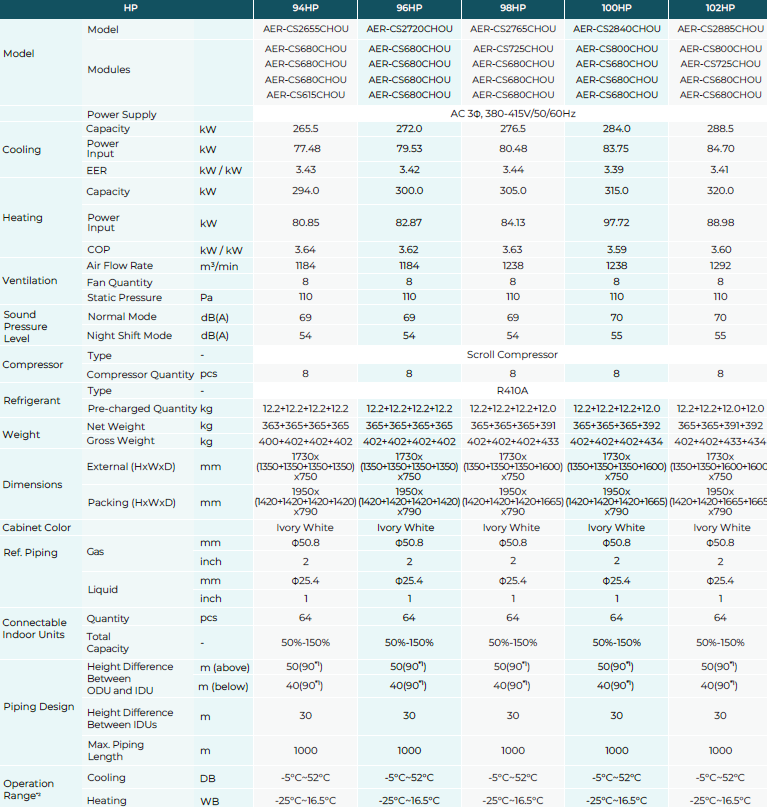

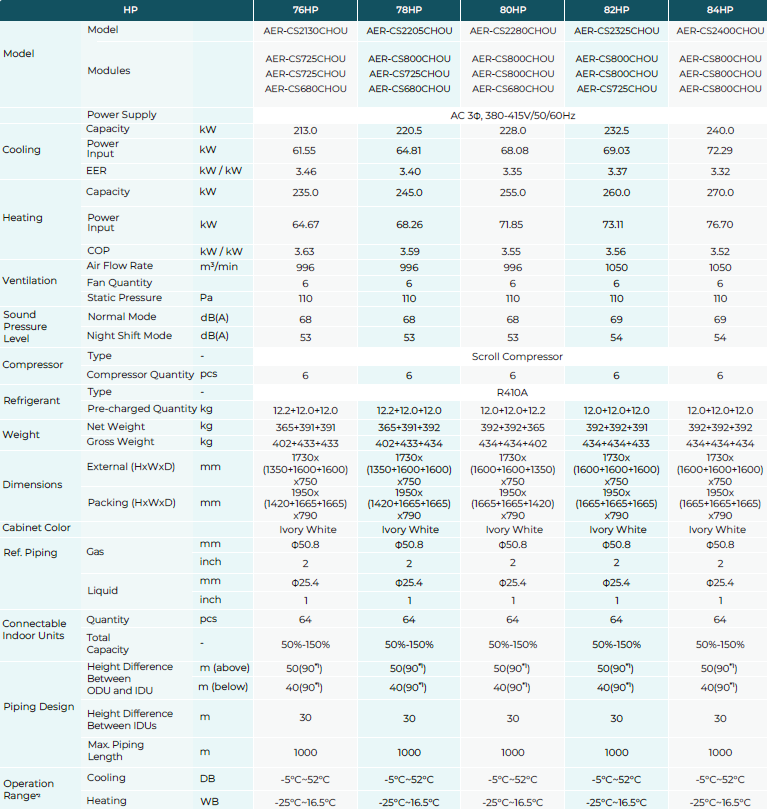

Notes:

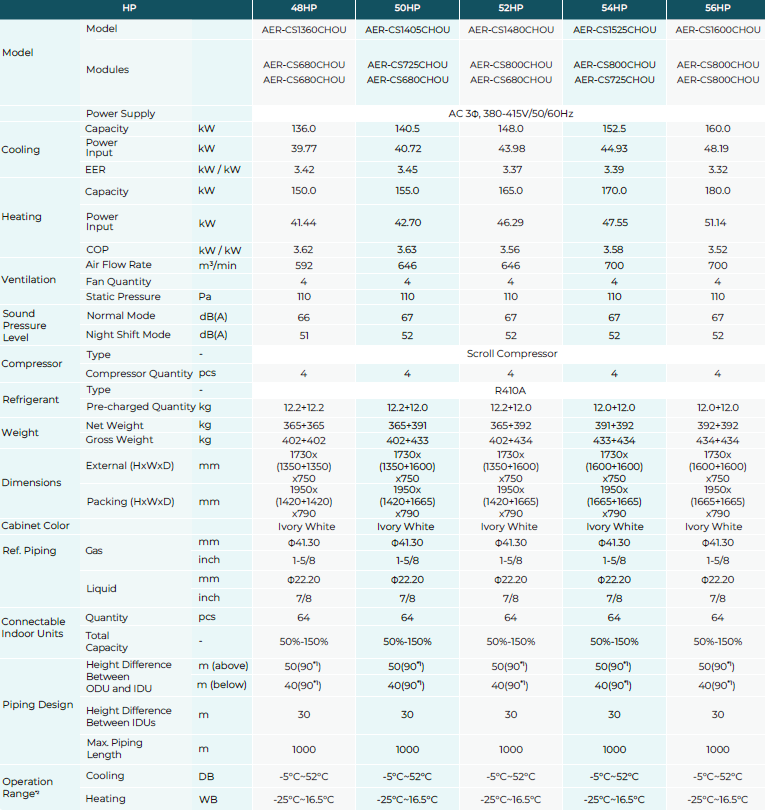

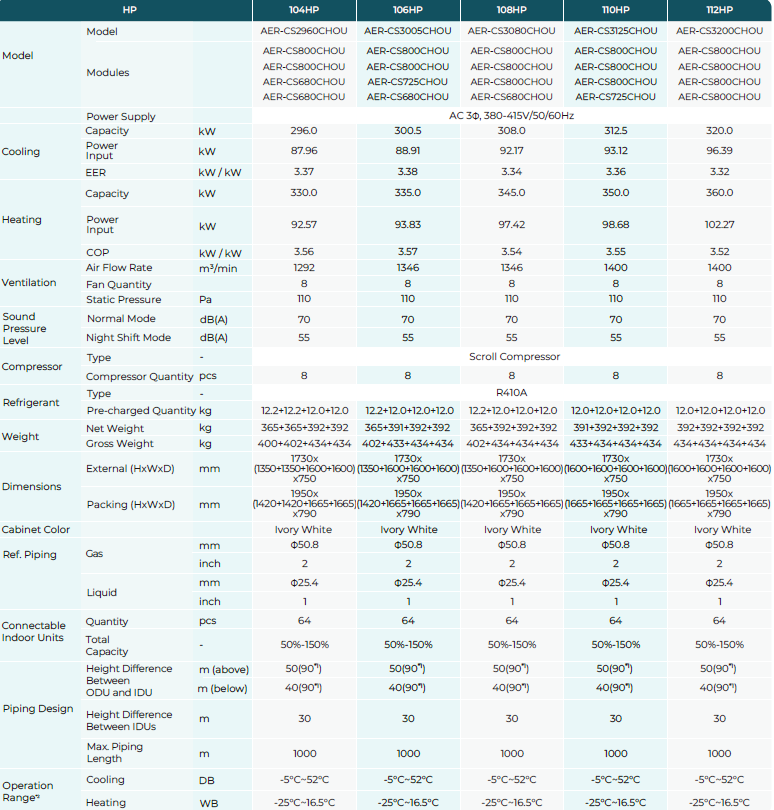

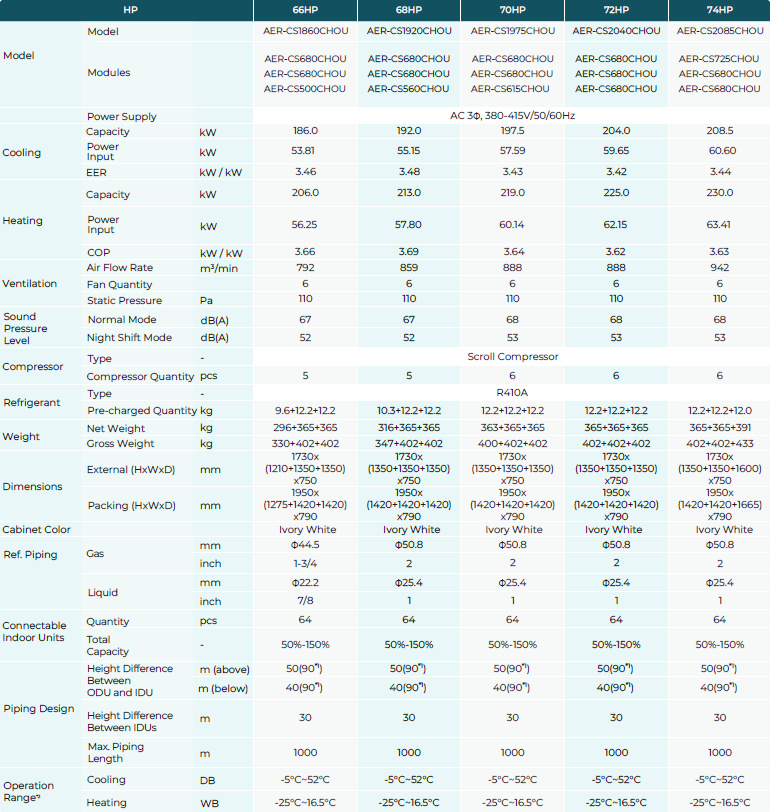

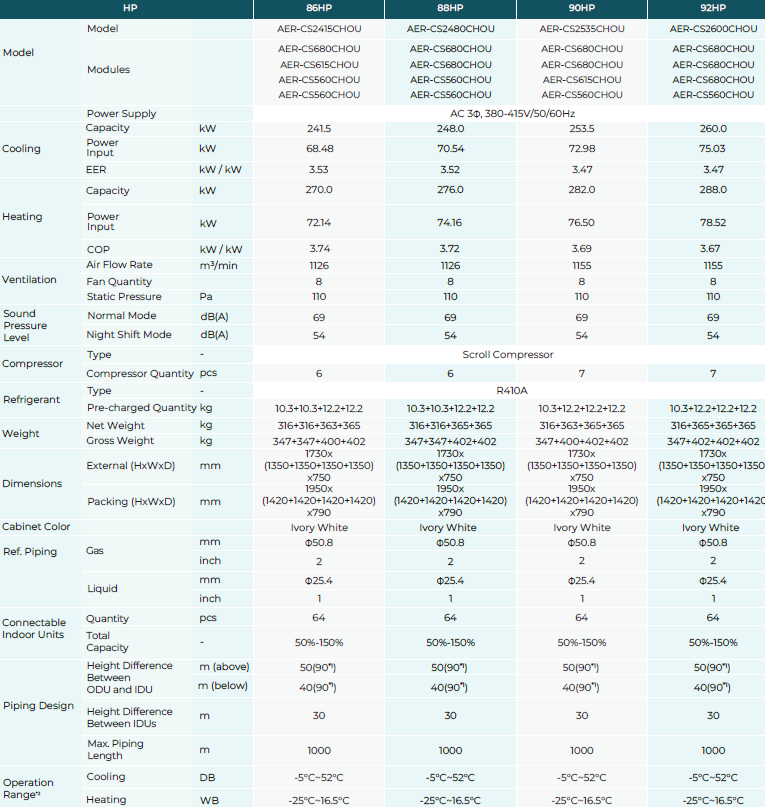

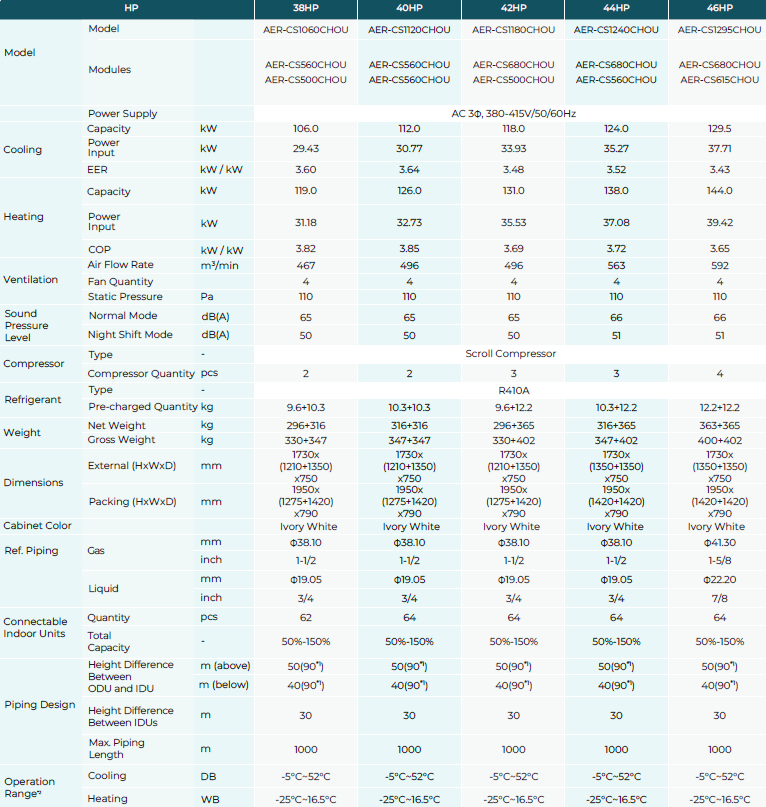

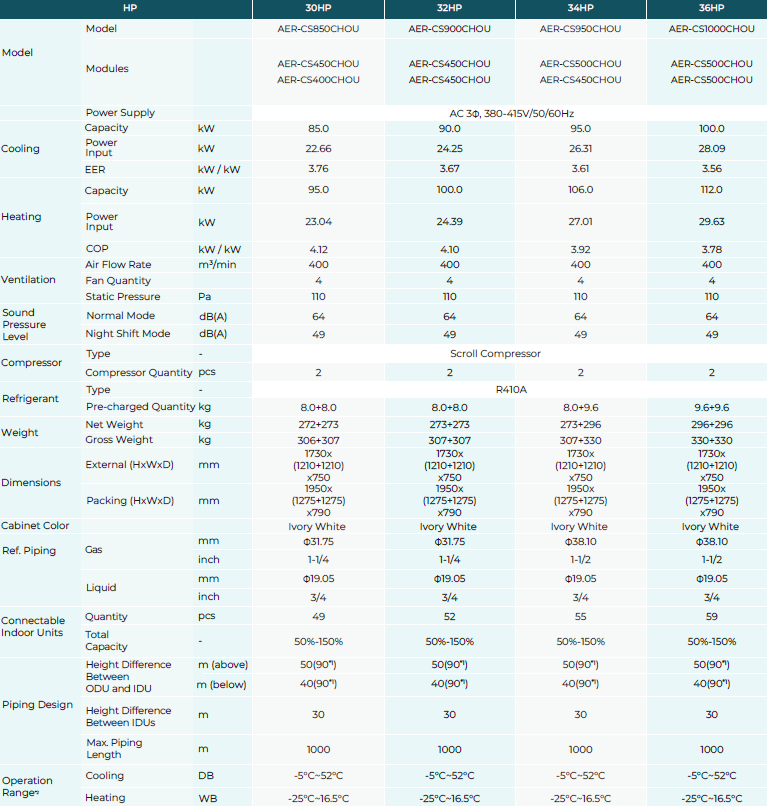

• Rated cooling capacity and rated heating capacity are tested in the following conditions:

Cooling conditions:
indoor air inlet temperature: 27°C DB 19°C WB,
outdoor air inlet temperature: 35°C DB,
pipe length: 7.5m,
pipe height difference: 0m.
Heating conditions:
indoor air inlet temperature: 20°C DB,
outdoor air inlet temperature: 7°C DB 6°CWB,
pipe length: 7.5m,
pipe height difference: 0m.

• The above noise values are measured in the anechoic chamber without reflected echo, therefore the impact of the reflected echo must be included at the scene.

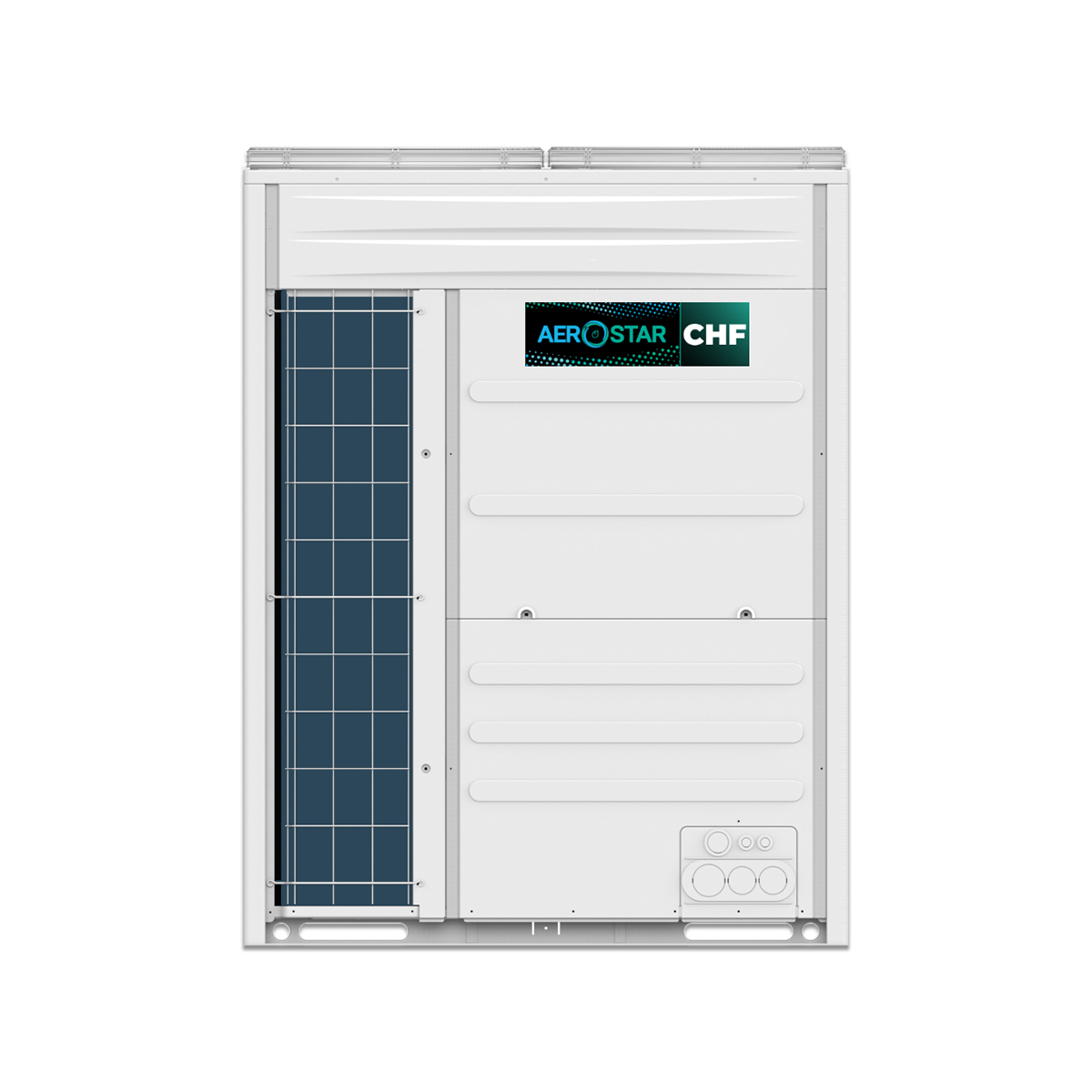

• The final appearance of outdoor units is subject to the actual products. If you have any questions,please contact our professional engineer.
