Round diffuser
Assignment
Circular diffusers are used in supply and exhaust ventilation. Designed for low and medium pressure systems, as well as for supply and exhaust air conditioning systems.
They can work with constant and variable air flow.
Design and materials
The body and the inner part of this diffuser are made of high quality aluminium, and the air flow control damper is made of plastic.
They are painted by powder coating in RAL 9016, which provides reliable protection against negative environmental factors and prevents premature wear of the product. The diffuser is not afraid of moisture and can be easily cleaned from dust.
Modifications

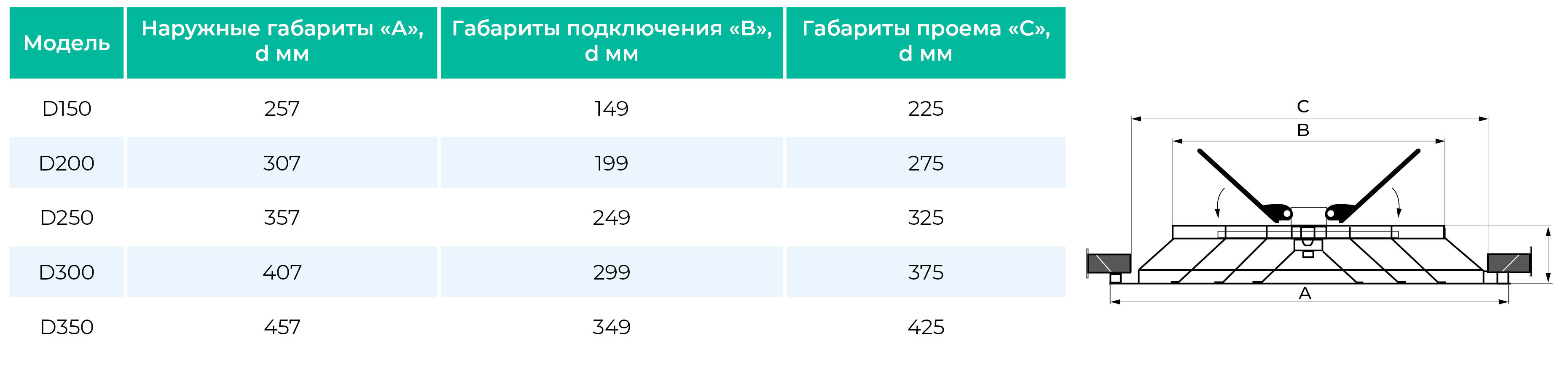

Diffusers of this series include products of only standard diameters: d150, d200, d250, d300, d350.
Example of order and mounting
Diffuser D150mm (257mm) (RAL 9016) - connection diameter 149mm, external dimensions 257mm, color - white.
Configuration
Delivery with the Plenum box of VD made of galvanized steel (with lateral or axial connection to an air duct of round or rectangular section) is possible.
