Slit diffuser SDA
Assignment

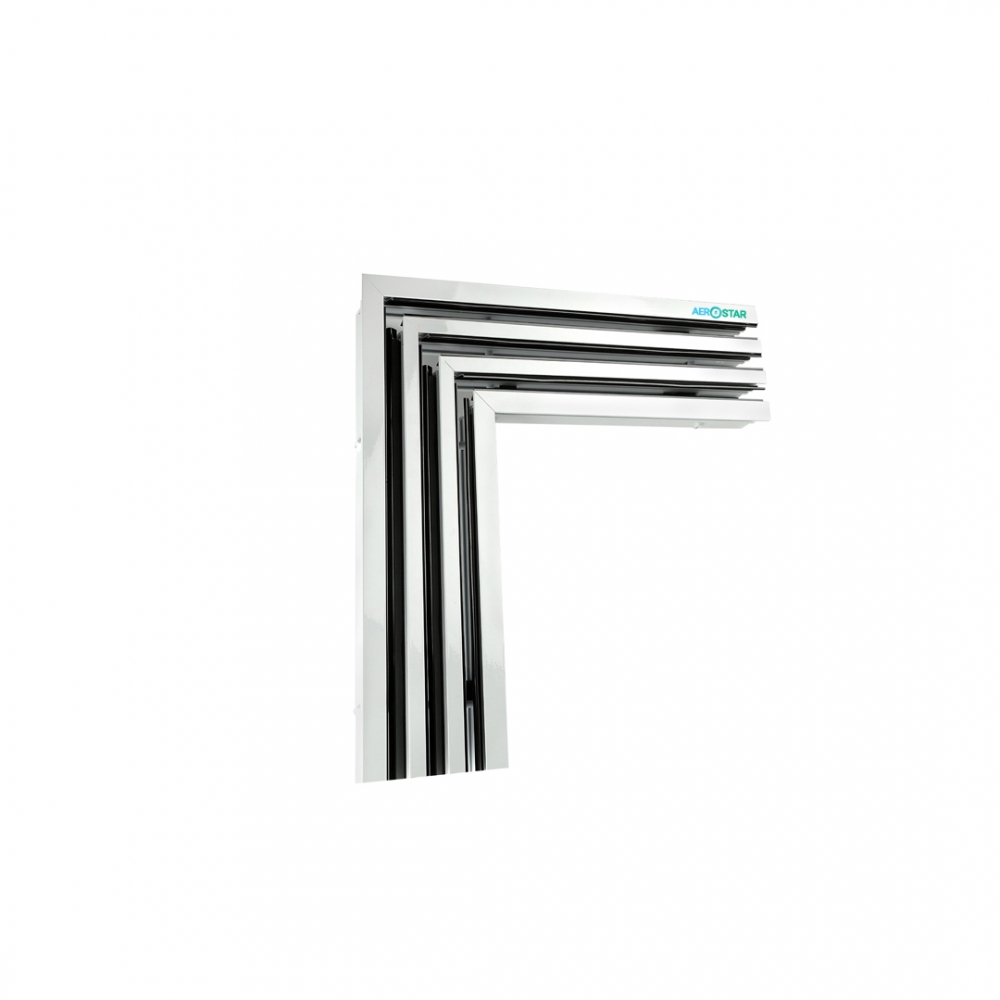

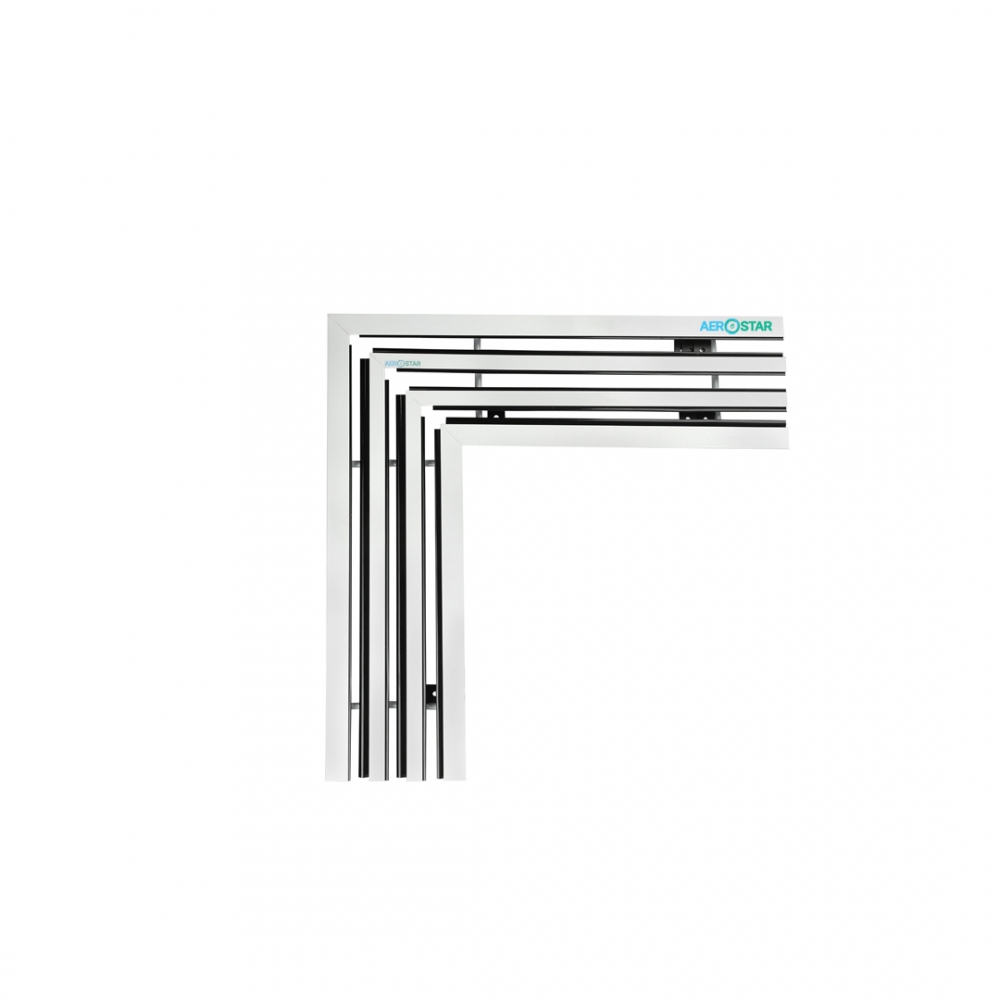

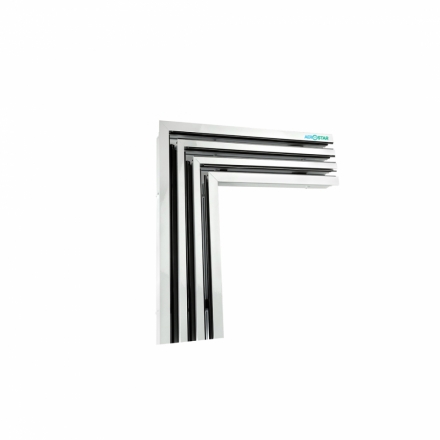

These corner elements of SDA slit diffusers are used in supply and exhaust ventilation and all types of air conditioning systems. Designed to be installed in the ceiling providing an excellent aesthetic appearance. Can be used for air supply and exhaust.
Design and materials

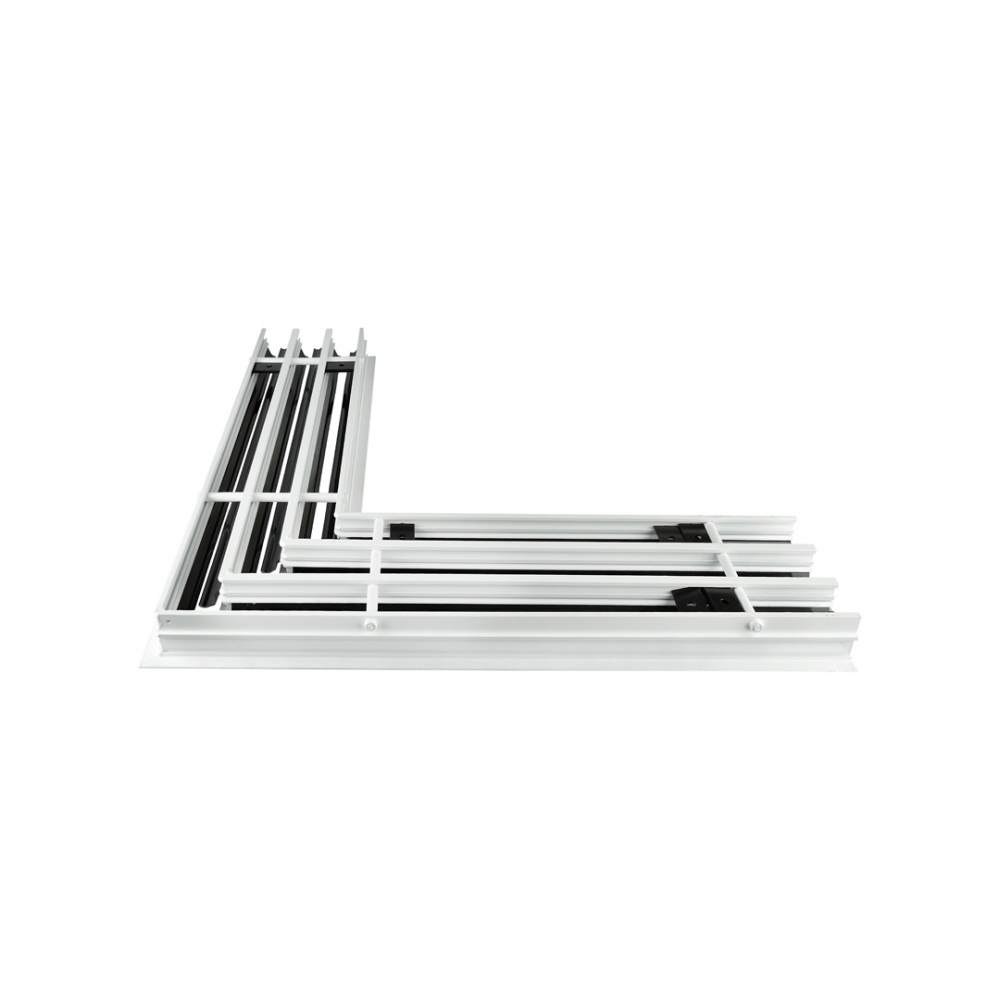

The structure of this product consists of a high-quality aluminium casing with horizontal slit holes, the number of which, depending on the model, can vary from 1 to 6.
The louvers on the frame are movable, rotary, and provide regulation of the air direction in the room. During the production of diffusers, a protective decorative coating is used - powder painting. The standard color of painting is white (RAL-9016), but at the customer request it is possible to paint the case and louvers in another colors according to the RAL catalogue.
Modifications

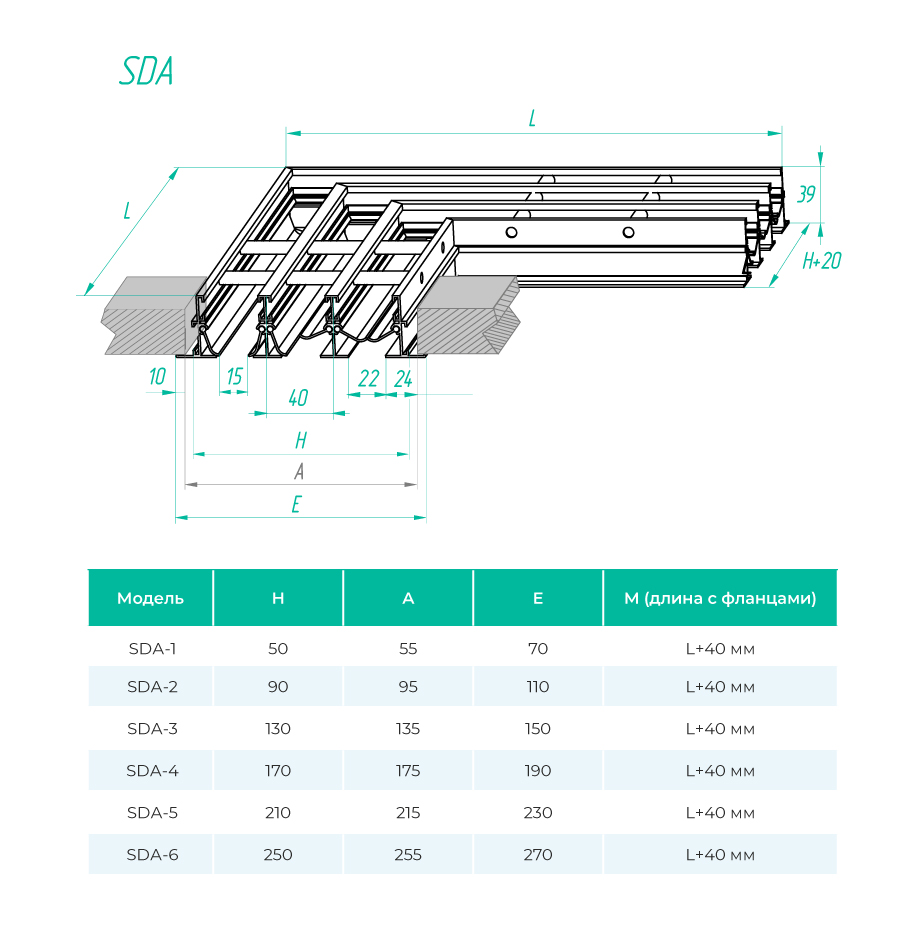

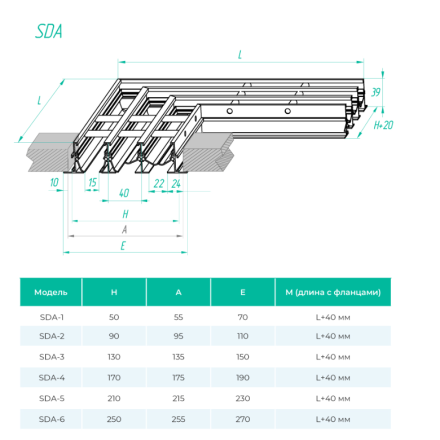

Diffusers of this series include products of both standard sizes and the ability to manufacture any length L with a step of 5 mm in the range from 300 to 1000 mm.
The standard length of the corner piece is 500mm, measured along the long side (outside).
The standard angle is 90 ° (not specified), if different – it is written in the name.
The H dimension is fixed.
SDA-1 – h = 50 mm – diffuser with 1 slot has a connection height of 50mm, each subsequent slot plus 40mm.
Example of order and mounting
SDA-1-0 (RAL-9016/9005) L = 500 – with 1 slot, 0 – without side flanges (used as a middle element when installing several slot diffusers in one line around the perimeter). Frame colour – white, louvers – black.
SDA + P-2-1 (RAL-9016/9016 / perf 9005) L = 300 – with 2 slots, 1 – one side is plugged, the other is open (the set includes joint plates for connecting slit diffusers to each other). Frame colour – white, louvers – white, perforation – black.
SDA + D-110-3-2 (RAL-9016/9005 / demp 9005) L = 500 - 110 - degree of corner element, with 3 slots, 2 - with 2 side flanges (closed edges). Frame color - white, lamellas - black, damper - black.
Configuration
- can be delivered with a Plenum-box made of galvanized steel
- can be delivered with perforation (+P)
- can be delivered with damper (+D)

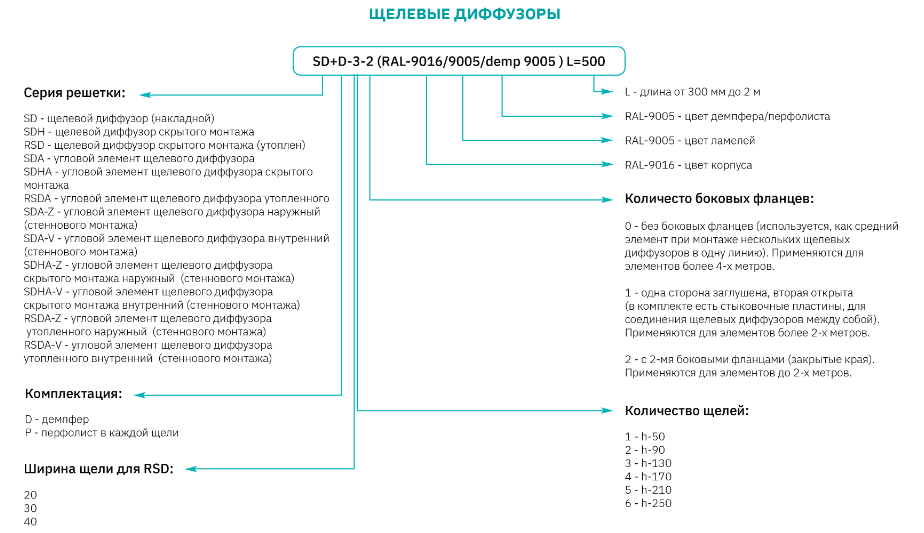

Scheme for ordering slit diffusers
