Slit diffuser SDH

Assignment

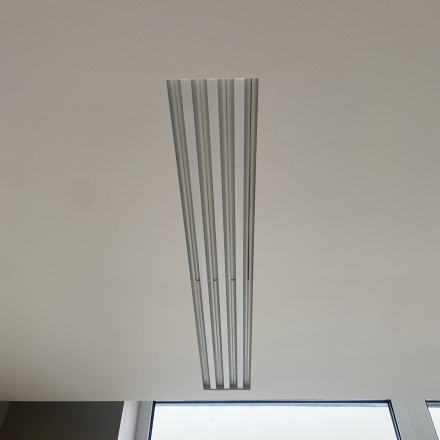

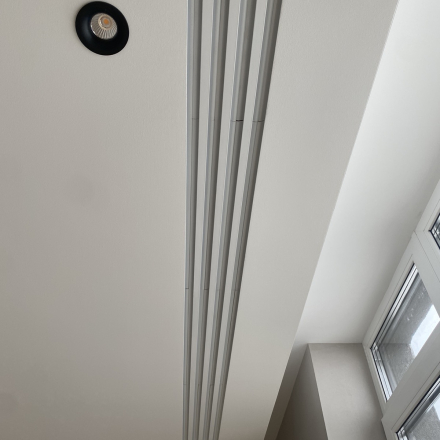

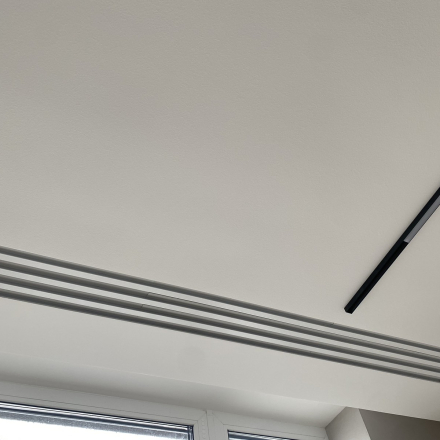

Slit diffusers of concealed mounting are used in facilities with increased aesthetic requirements, but with the same technical parameters. They are used in supply and exhaust ventilation and all types of air conditioning systems. Designed for installation in walls or plasterboard ceilings providing an excellent aesthetic appearance. Can be used for air supply and exhaust.

Design and materials

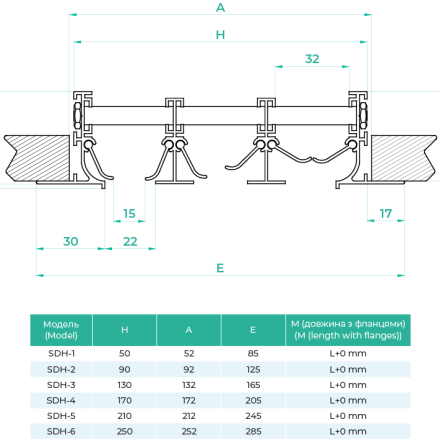

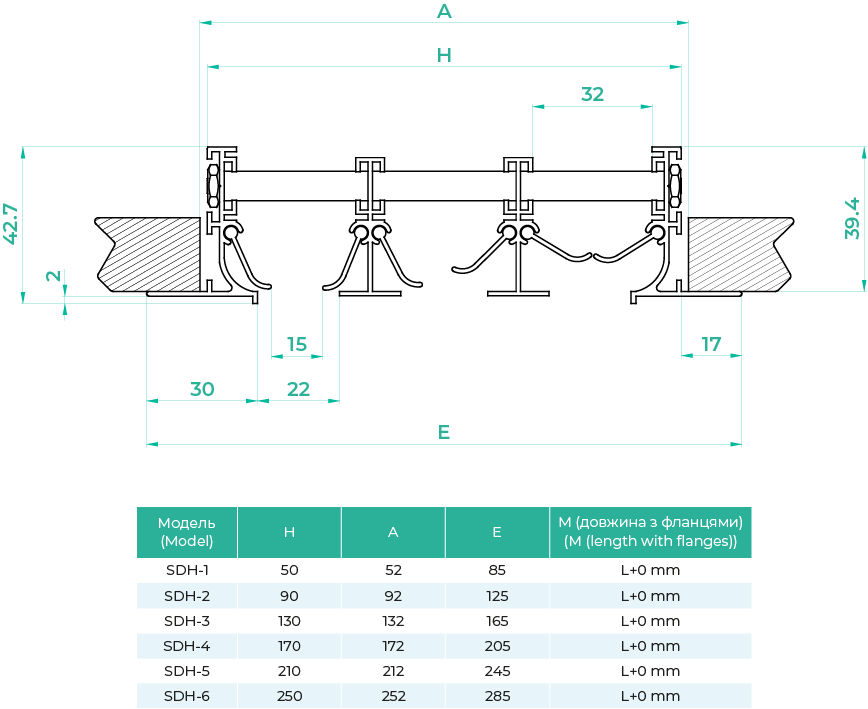

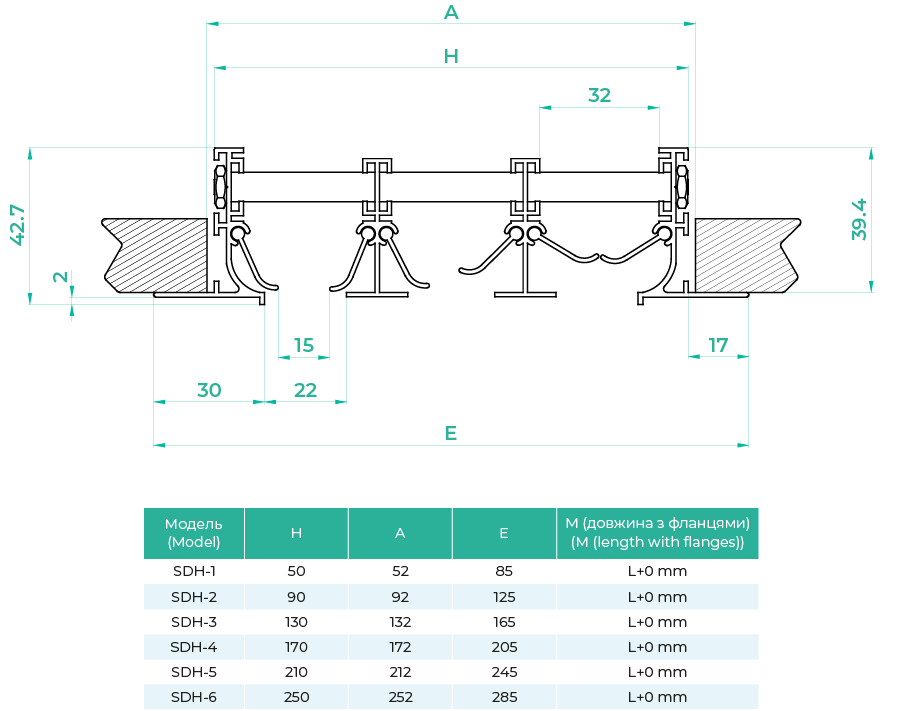

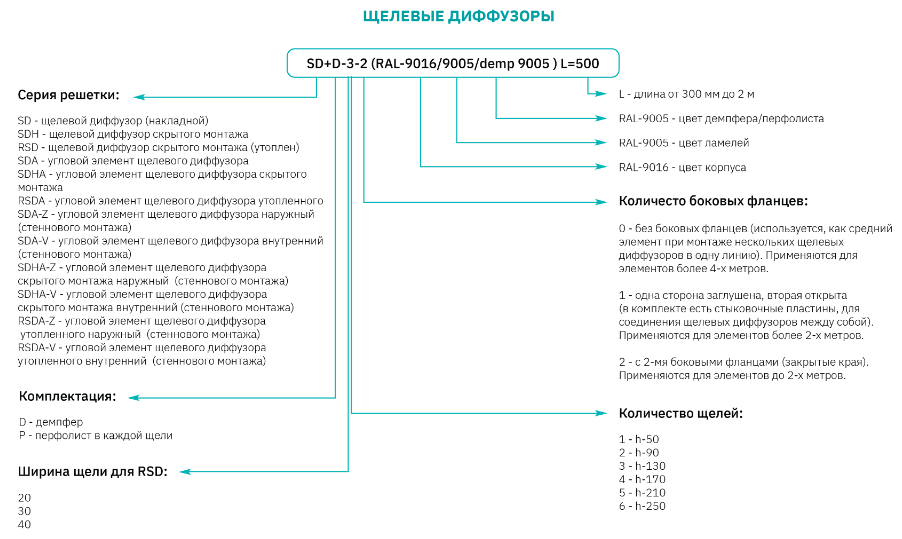

The structure of this product consists of a high-quality aluminium casing with horizontal slit holes, the number of which, depending on the model, can vary from 1 to 6.

The louvers on the frame are movable, rotary, and provide regulation of the air direction in the room.

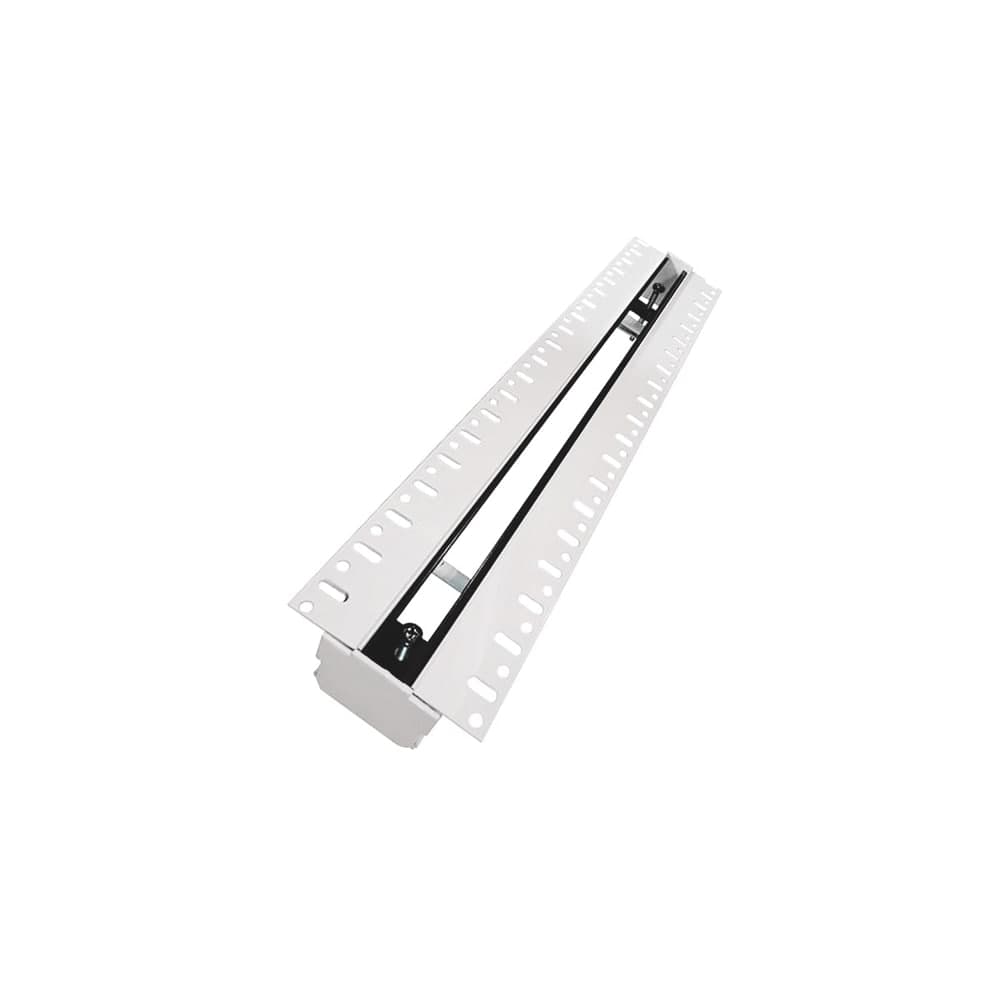

The frame of such a diffuser has ribs and holes for better joining of the filler material with the plasterboard. The inner strip, which is used to separate the slots (2 slots or more), is not putty, therefore, the colour of the diffuser must be matched to the colour of the ceiling or wall, depending on the place of its installation.

Several elements can be connected so that they can be assembled in continuous lines of almost any length and shape.

During the production of dif

fusers, a protective decorative coating is used - powder painting. The standard color of painting is white(RAL-9016), but at the customer request it is possible to paint the case and louvers in another colors according to the RAL catalogue.
