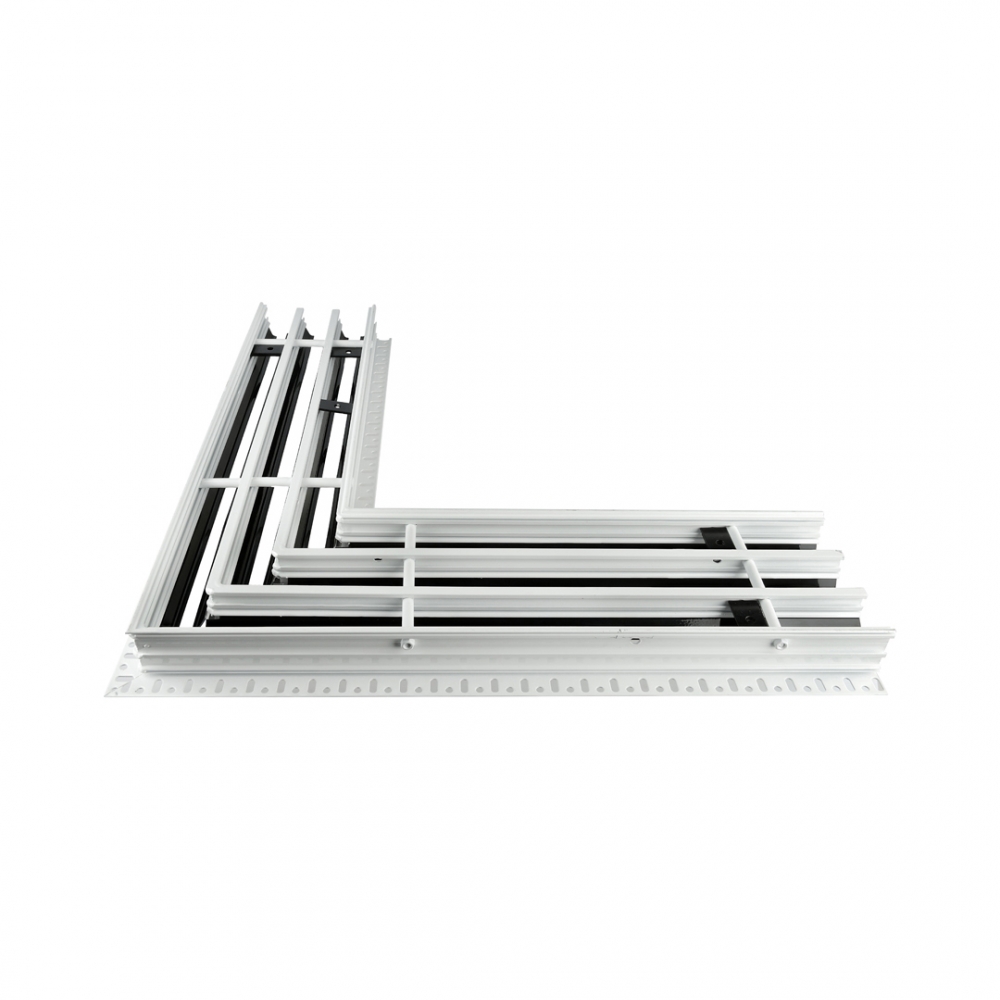

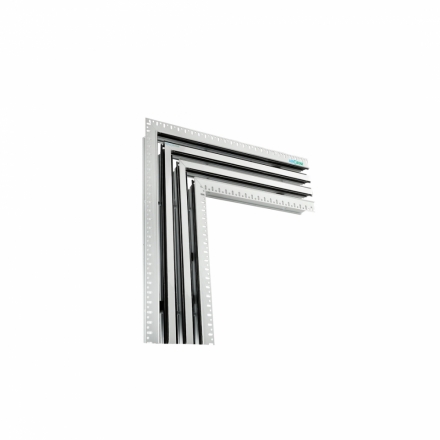

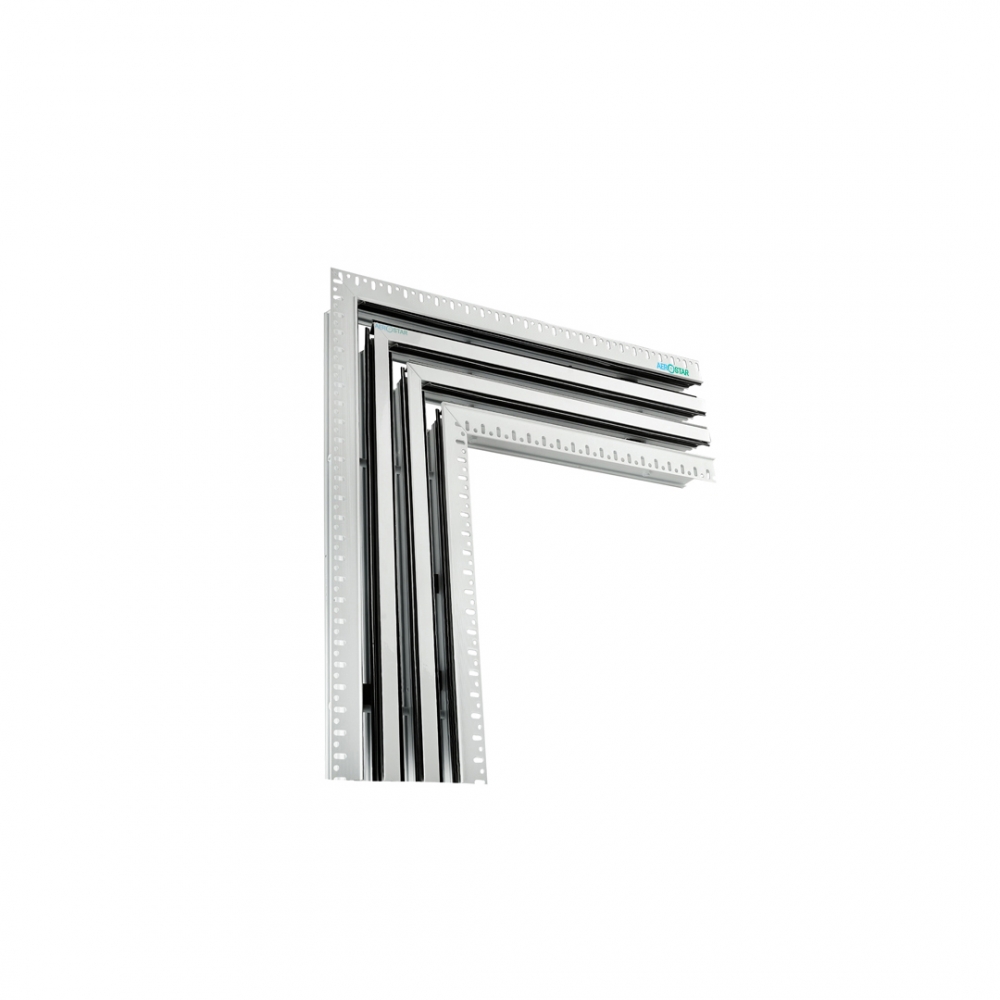

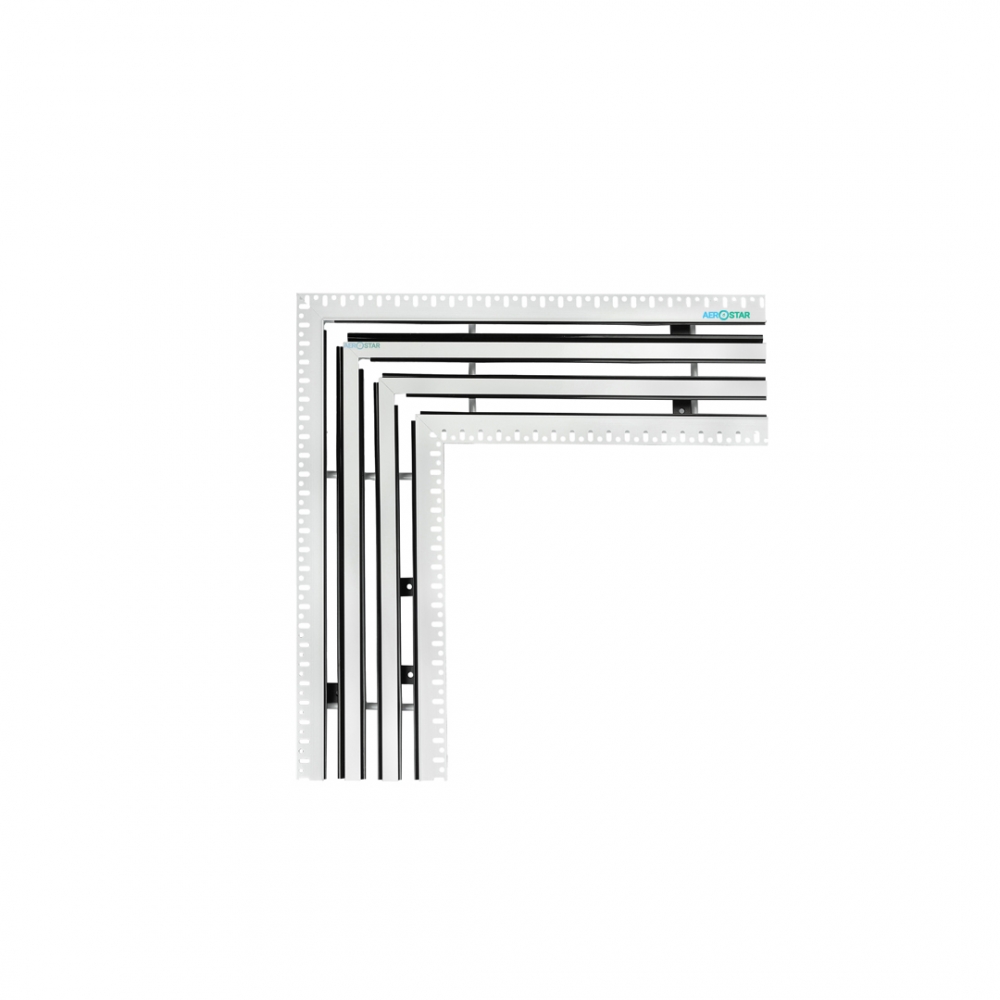

Slit diffusers of concealed mounting (corner) SDHA
Assignment
These corner elements of SDHA slit diffusers of concealed mounting are used in supply and exhaust ventilation and all types of air conditioning systems in facilities with increased aesthetic requirements, but with the preservation of technical parameters. Designed to be installed in the ceiling providing an excellent aesthetic appearance. Can be used for air supply and exhaust.
Design and materials
Diffusers of this series include products of both standard sizes and the ability to manufacture any length L with a step of 5 mm in the range from 300 to 1000 mm.
The standard length of the corner piece is 500mm, measured on the long side (outside).
The standard angle is 90 ° (not specified), if different, it is written in the name.

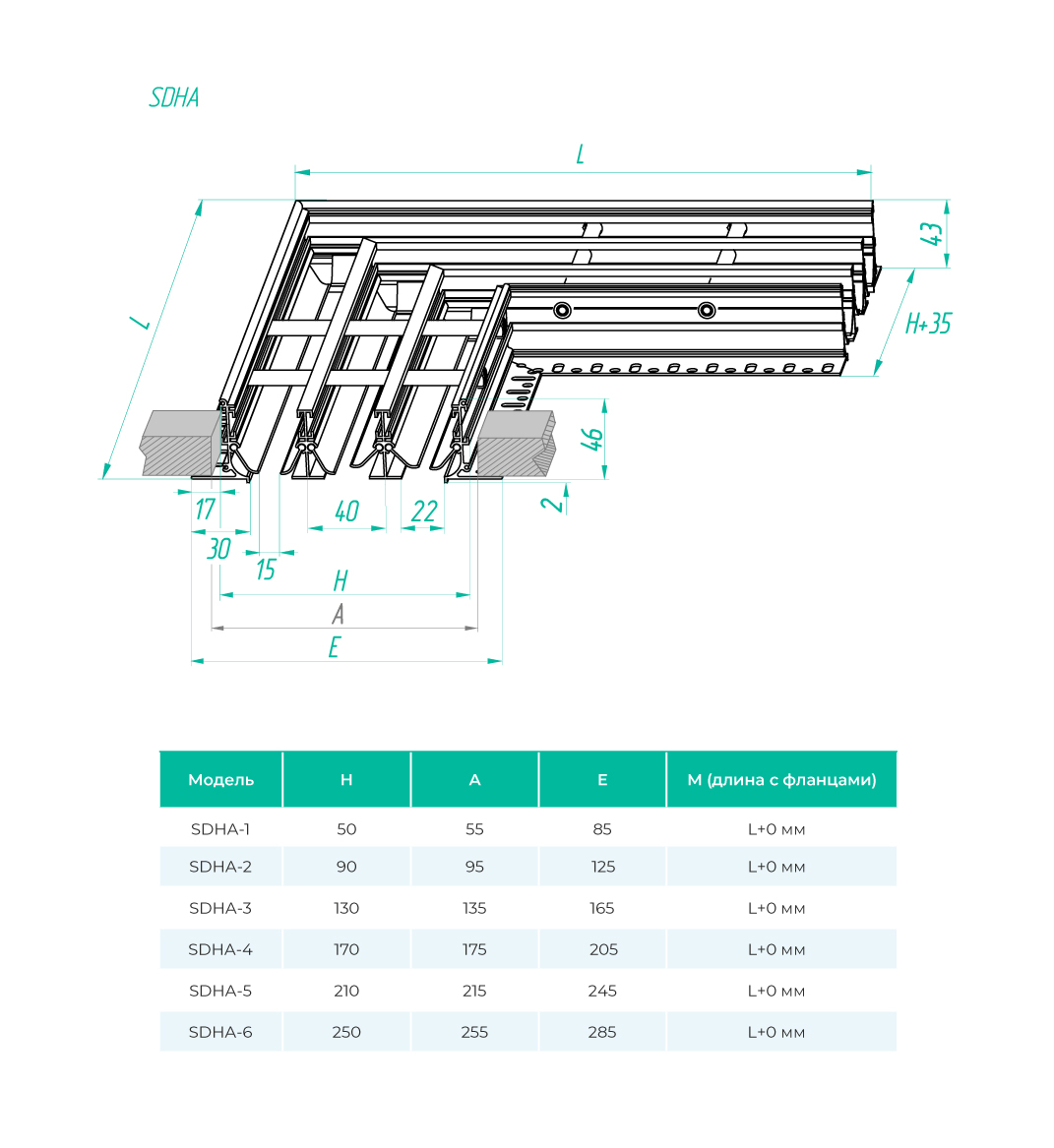

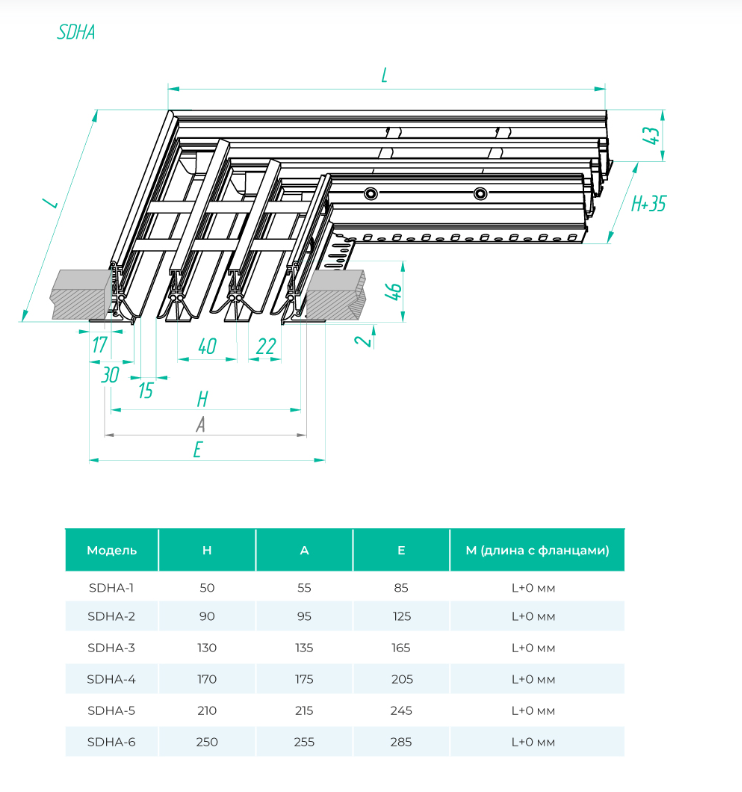

The H dimension is fixed.
SDHA-1 - h = 50 mm – diffuser with 1 slot has a connection height of 50mm, each subsequent slot plus 40mm.
Example of order and mounting
SDHA-1-0 (RAL-9016/9005) L = 500 – with 1 slot, 0 – without side flanges (used as a middle element when installing several slit diffusers in one line around the perimeter). Frame colour – white, louvers – black.
SDHA + P-2-1 (RAL-9016/9016 / perf 9005) L = 300 – with 2 slots, 1 – one side is plugged, the other is open (the set includes joint plates for connecting slot diffusers to each other). Frame colour – white, louvers – white, perforation – black.
SDHA + D-110-3-2 (RAL-9016/9005 / demp 9005) L = 500 – 110 – degree of corner element, with 3 slots, 2 – with 2 side flanges (closed edges). Frame colour - white, louvers – black, damper – black.
Configuration
- can be delivered with a Plenum-box made of galvanized steel
- can be delivered with perforation (+P)
- can be delivered with damper (+D)

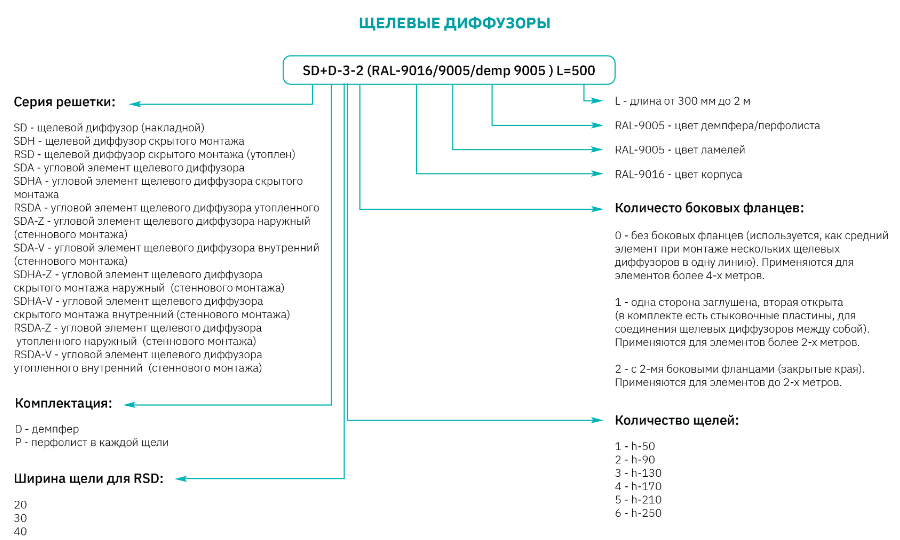

Scheme for ordering slit diffusers
