Slit diffuser SDH+P

Purpose

Flush-mounted slot diffusers are used in objects with higher aesthetic requirements, but with preservation of technical parameters. They are used in supply and exhaust ventilation and in any air conditioning systems. They are designed for installation in walls or plasterboard ceilings providing excellent aesthetic appearance. Can be used for air supply and exhaust.

Construction and materials

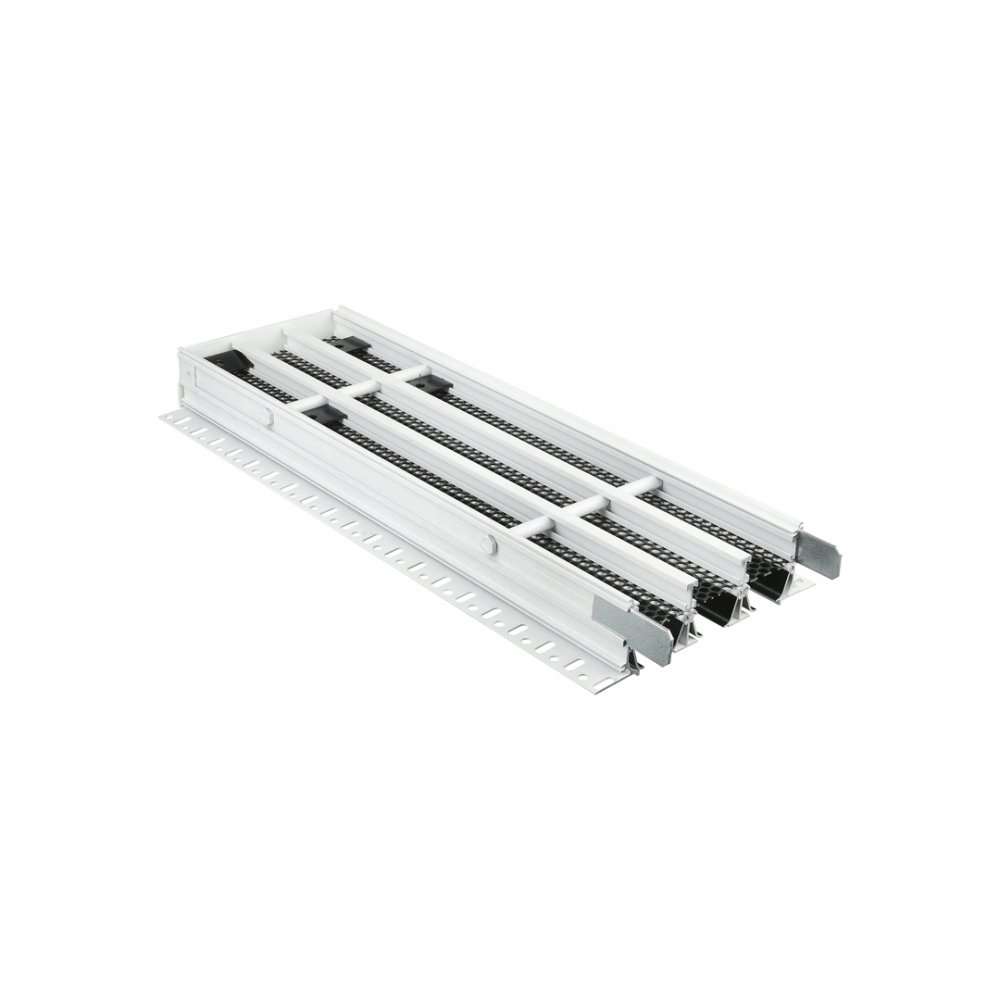

The design of this product consists of a high quality aluminum housing with horizontal slots, the number of which, depending on the model can vary from 1 to 6. The louvers on the frame are movable, pivoting, and provide regulation of the air direction in the room.

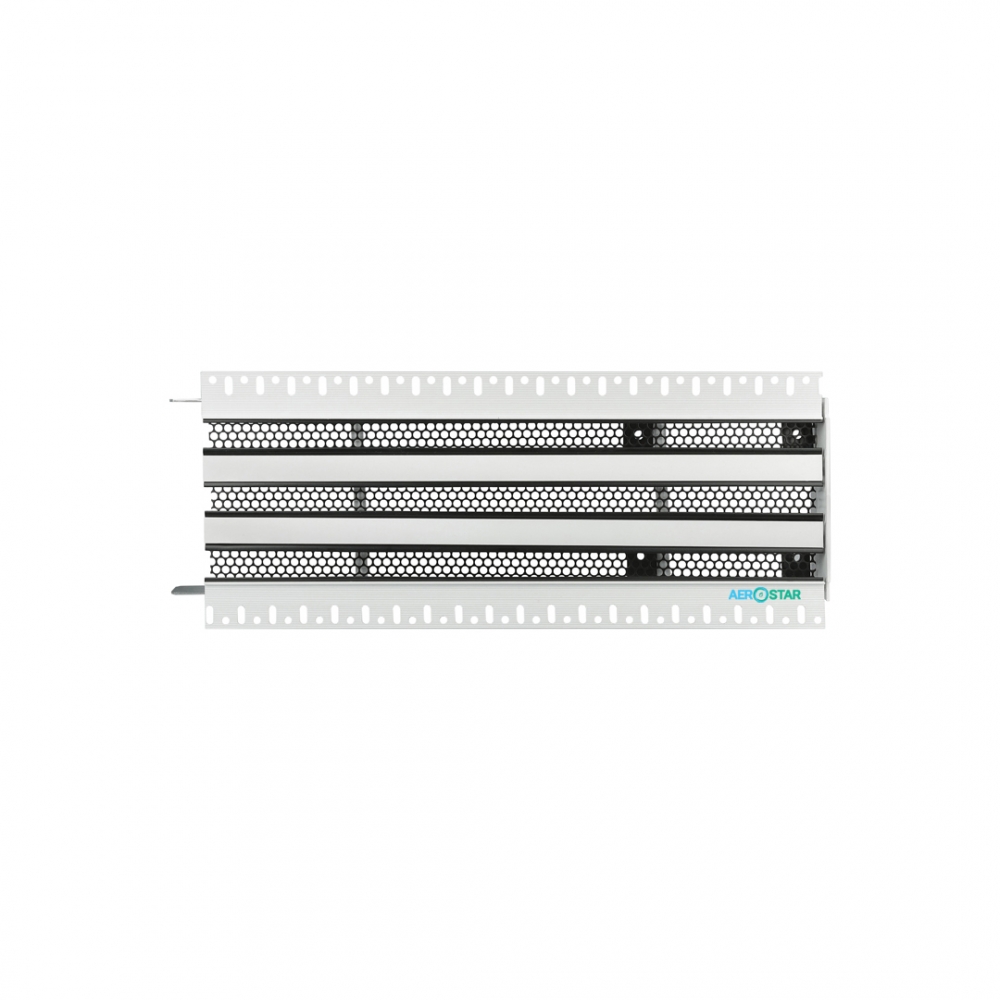

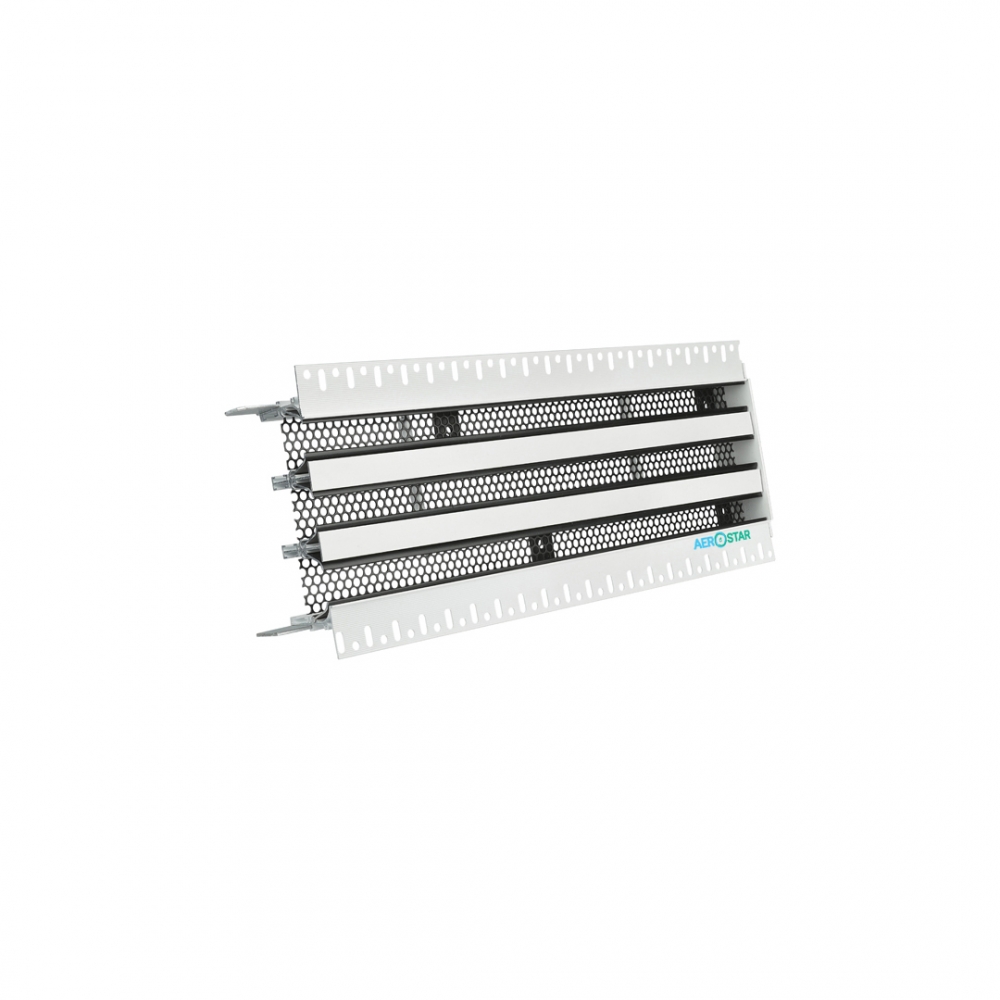

SDH+P - Slotted diffuser with perforations inside each slot. It performs both technical function - uniform air distribution along the entire length of the slit, and decorative - hides from full view behind the slit space.

Several elements can be connected, so that they can be assembled into continuous lines of almost any length and shape (joining plates are supplied).

The diffusers are manufactured using a protective decorative coating - powder coating. The standard paint color is white (RAL-9016), but at the Customer's request it is possible to paint the body and lamellae
