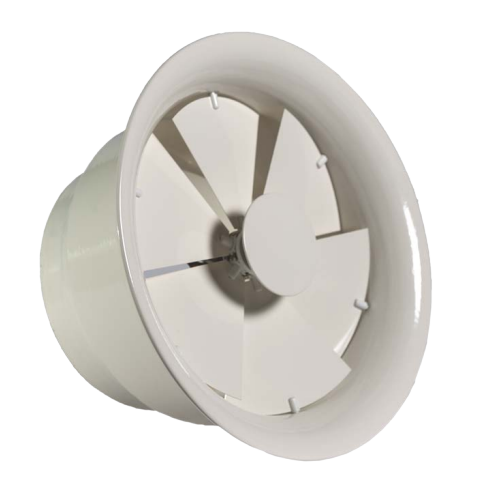

DVA vortex diffuser

Application.

The DVA series vortex diffuser with adjustable blades is designed for use in air conditioning, ventilation and heating systems.

It is used to distribute a large amount of air with a high temperature difference.

Installation.

It is installed in rooms with ceiling heights of more than 4 meters.

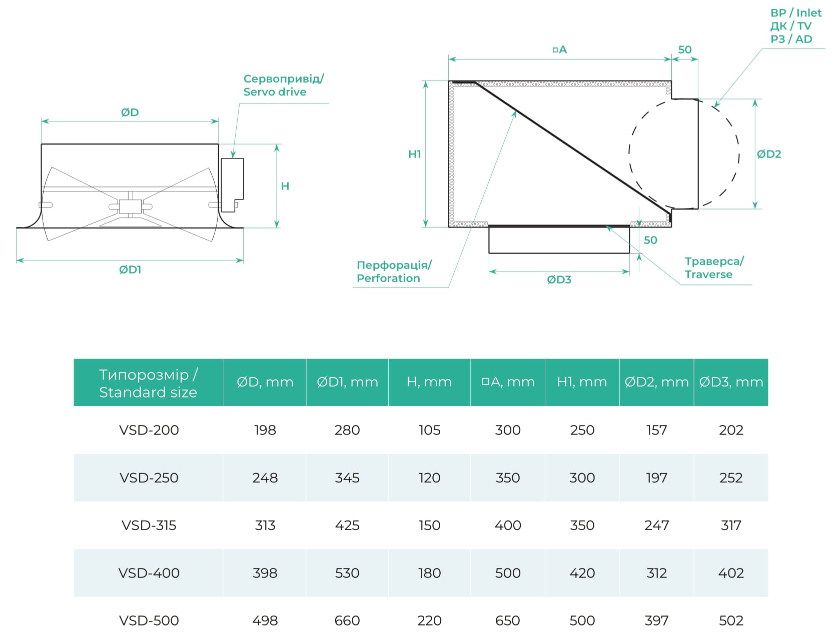

The direction of air flow is changed by adjusting the angle of the blades by means of: - manual central adjustment; - servo drive; - thermal cylinder. This allows achieving a high level of induction and precise control of the air flow from 0° (fully open-vertical heated air outlet) to 90° degrees (fully closed-horizontal cooled air outlet), providing intensive mixing of the supply cooled or heated air with the air inside.
