Revision Hatches
Revision hatches are utilized to access concealed equipment or adjustable devices.
SKU: ARPD0411
Purpose
Revision hatches are utilized to access concealed equipment or adjustable devices.
Construction and Materials
The construction of these models consists of a high-quality aluminum casing, and the doors are made of galvanized metal.

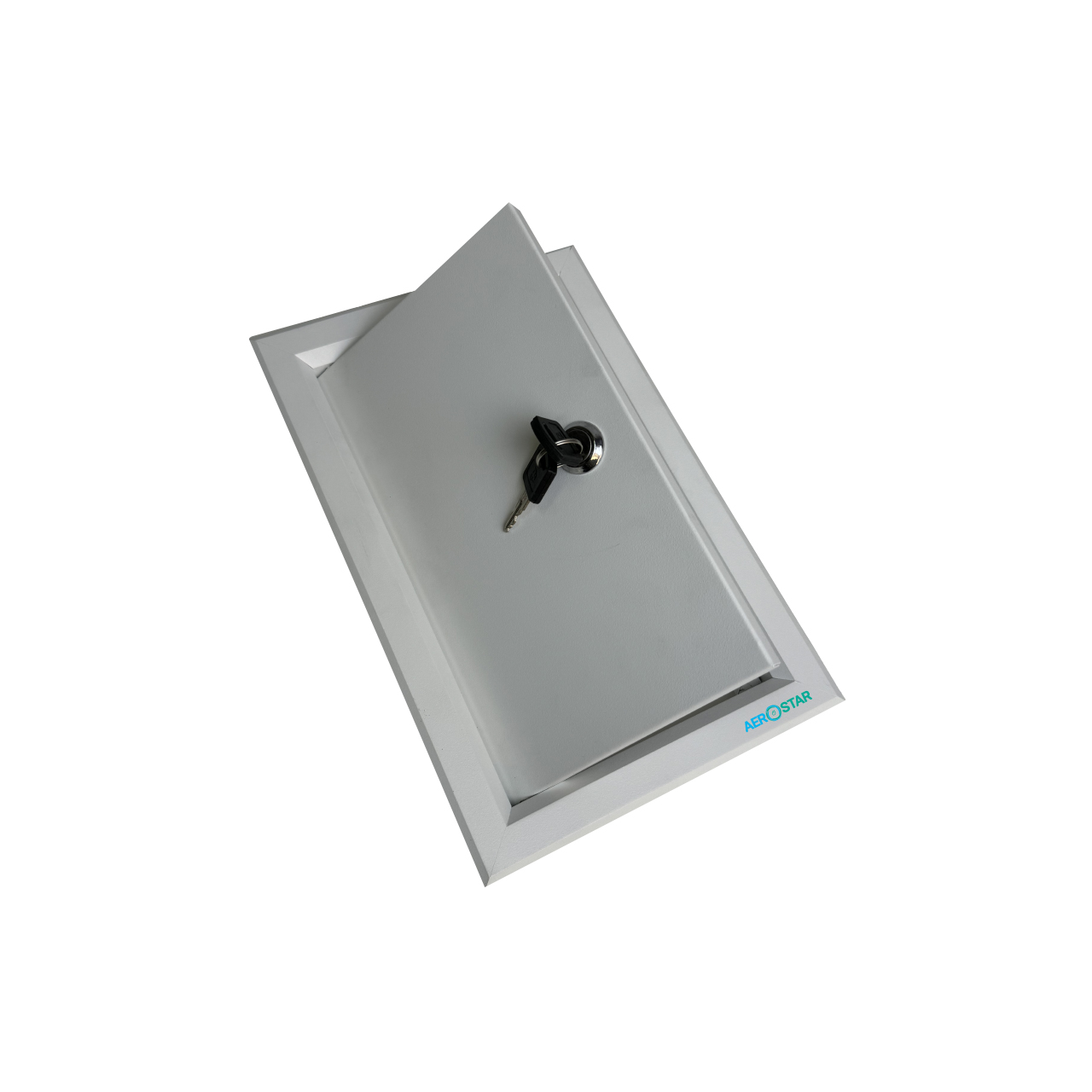

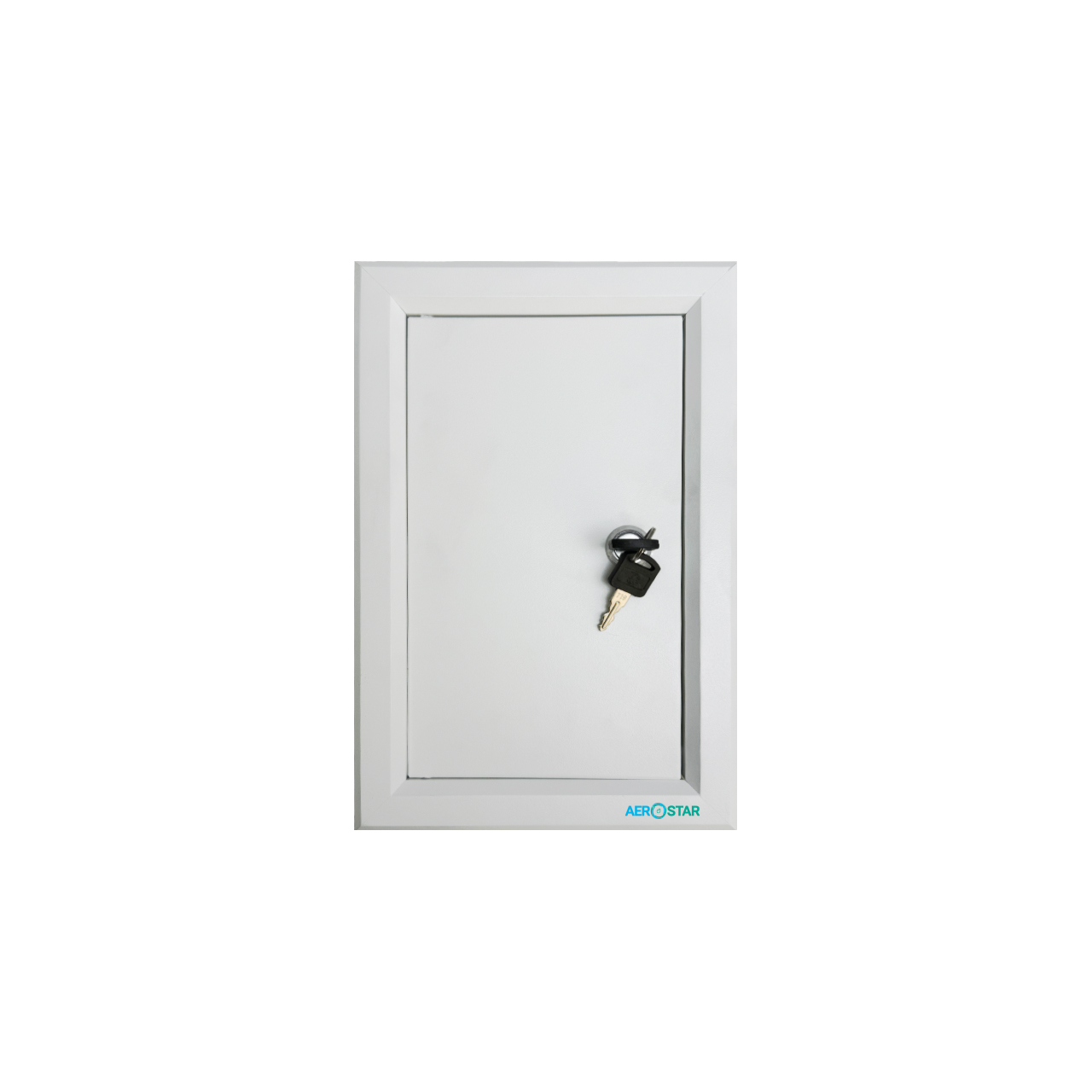

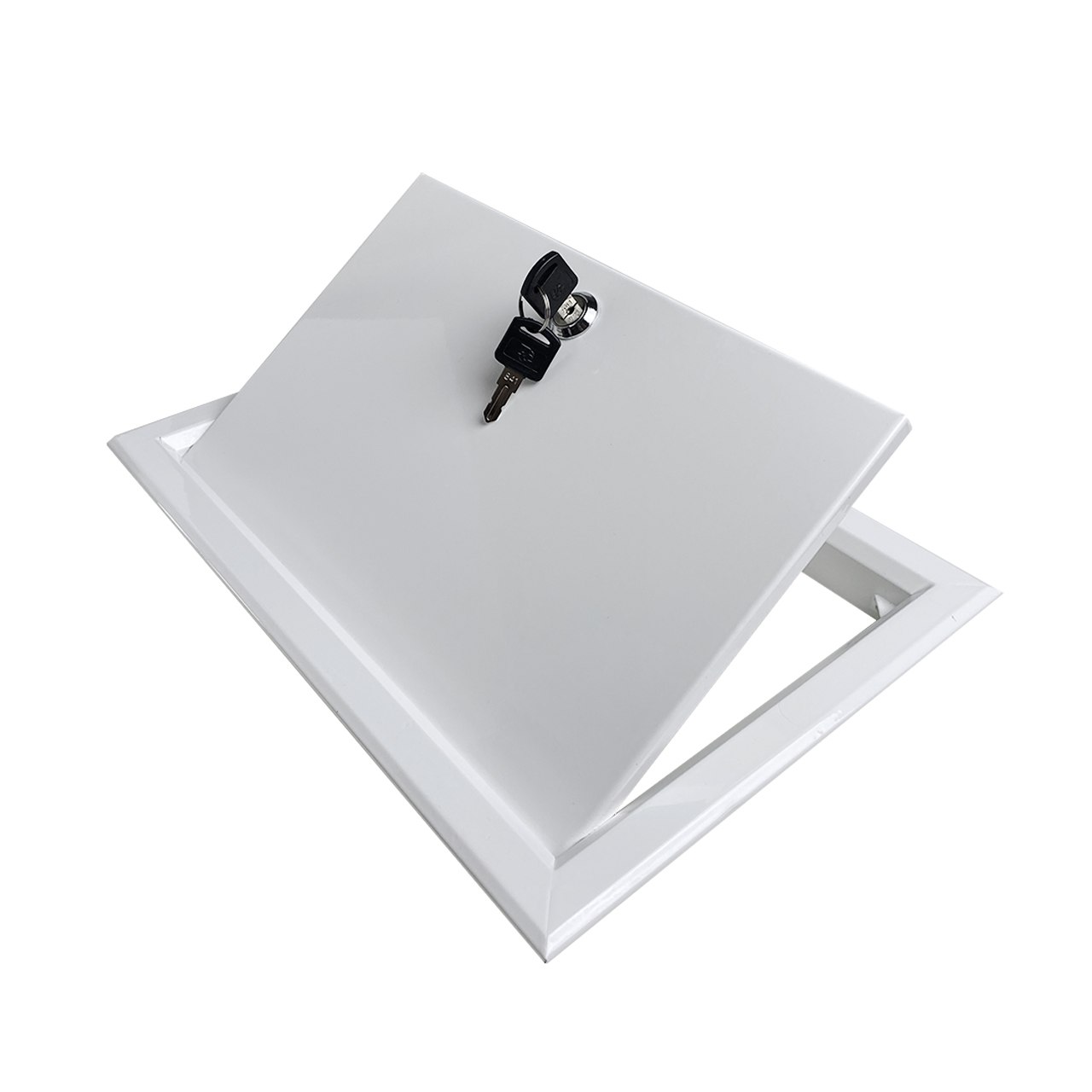

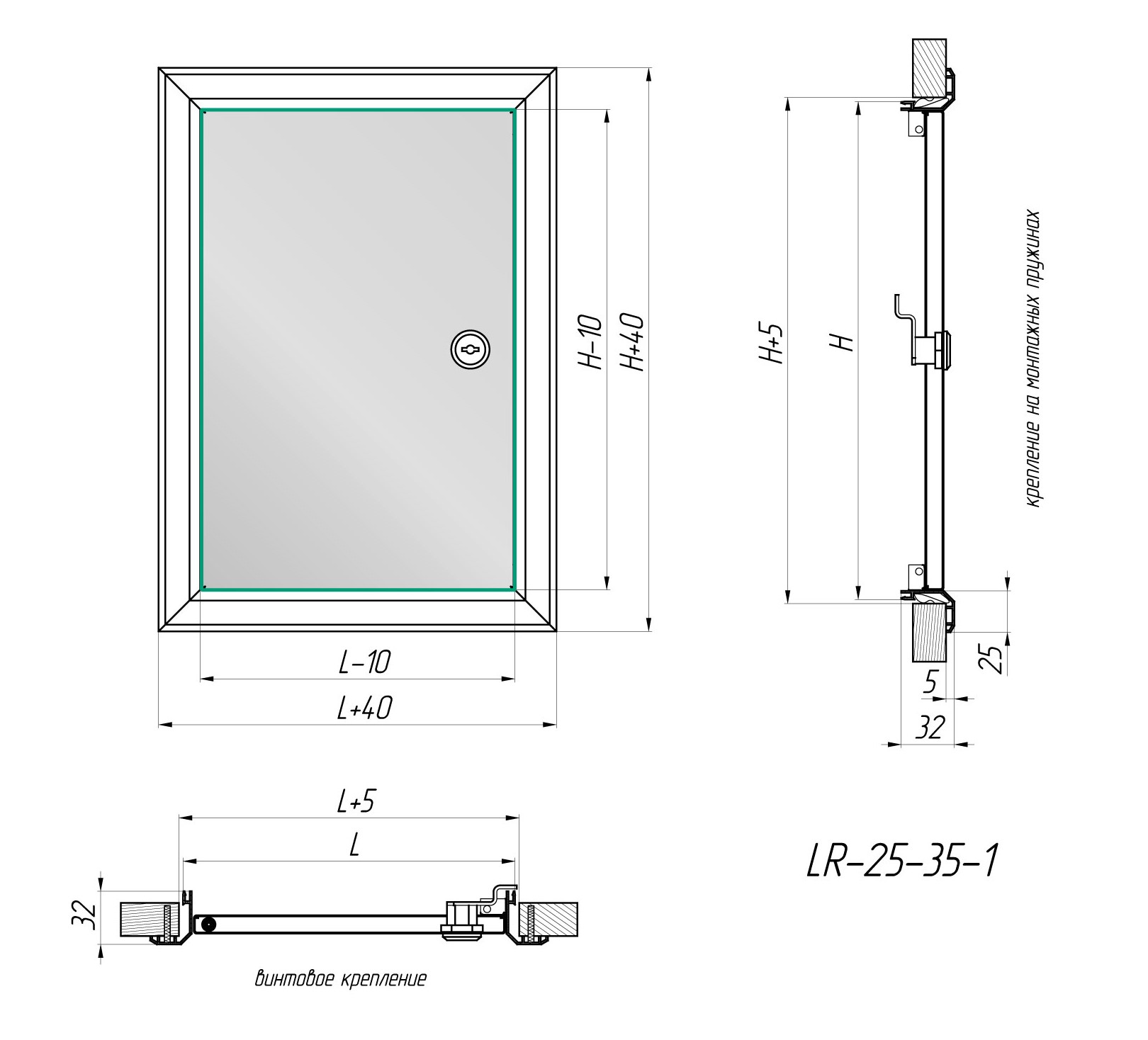

- LR 25-35-1: Single-leaf, hinged doors with locks.
- LR 25-35-2: Double-leaf, two doors hinged with locks, number of locks may vary depending on size.
- LR 30-30-1: Single-leaf, specifically for ceiling installation, panel not attached but placed within frame grooves, without a lock.
- LR 30-30-2: Double-leaf, specifically for ceiling installation, panel not attached but placed within frame grooves, without a lock.
Manufacturing
With mounting dimensions LxH in 5mm increments.
For dimensions where L > 600mm, it is recommended to use double-leaf hatches.
Order and Installation Example
LR 30-30-1*: Single-leaf, without a lock, secured through screw connection (mounting holes located on the front side of the grille frame), color white.
LR 25-35-2 (RAL 9005) 400x600h: Double-leaf, with default lock, secured through mounting springs, color black.
Components
- includes an installed lock (where applicable) and keys for them.
