DANFOSS controllers
Versatile and easy-to-use, the MCX programmable controls can be tailored to suit any HVAC needs. This allows the MCX to be used as a stand-alone controller or to create a more complex system with expansion modules.
SKU: ARPD0342
It is possible to adapt the software for any product in the range to the requirements of the object using the standard C ++ language or Danfoss MCXDesign graphical programming tool.
DANFOSS controllers
- 4 analog and 8 digital inputs;
- 3 analog and 6 digital outputs;
- Power supply 20/60 V DC current - 24 V a.c. current;
- Remote access to data via CANbus to connect an additional display (LCD is available) and a keyboard;
- Real time clock for managing weekly schedules;
- Opto-isolated Modbus RS485 serial interface;
- Available with or without graphic LCD display to display the required information;
- The dimensions of the modules are 4 DIN.

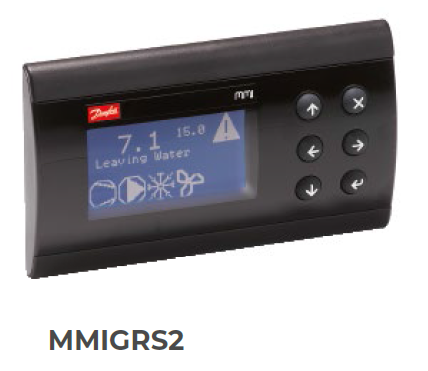

User interface module
Remote interface for the entire line of MCX controllers.
- Equipped with a graphic display for displaying information, providing a complete customization of the user interface.
- Connection to each MCX series unit is via CANbus network.
- All user interface information is loaded into the MCX controller; therefore there is no need for separate programming of the MMIGRS2 interface.
- The MMIGRS2 receives power from an external source or from the controller to which it is connected and automatically displays its user interface.
