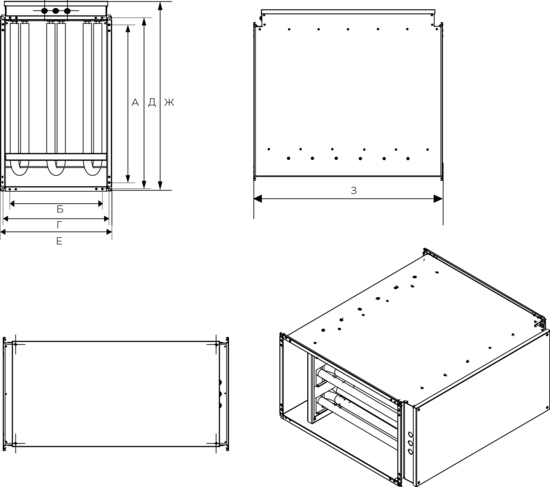

Electric heater SHE
By default, the heating elements in all electric heaters are connected in groups of three tubular electric heaters in a triangle shape with a voltage of 380 V.
SKU: ARPD0283
Operating parameters:
• Maximum temperature: + 65°С, + 90°С.
• Output signal: "dry" contact ", without voltage (switching contact).
• Rated operating voltage: 20V DC, 230V AC.
BASIC CONFIGURATION
Protective thermostat
Protection of the electric heater against temperature rise above allowed. At t +65°C, the heater must be switched off automatically. When t +90°С is reached, it is necessary to manually reset the overheating accident of the electric heater. The thermostat is a standard element of an electric heater.
Configuration:
Bimetallic element mounted inside a metal case.
